23080BL1
23080BL1使用說明
NTN 23080BL1-------杜絕假冒，假一賠十
調心滾子軸承 23080BL1使用范圍
使用機械：通用式清洗機、套圈、果蔬加工設備、測量儀器/量儀、冷庫。等機械設備。
23080BL1的配套型號
我們的服務
質保和售后：為保證需方訂購貨物盡快抵達，請需方在下訂單的時候務必以明確的方式告知我方收貨地址，電話以及發貨方式。本公司可根據客戶要求的發貨方式，采取空運（EMS、順風快遞、申通快遞...）、汽運、火車包裹、中鐵快運、送貨上門或客戶指定的其它方式發貨！
退換貨條例：具體事宜請聯系客服人員。

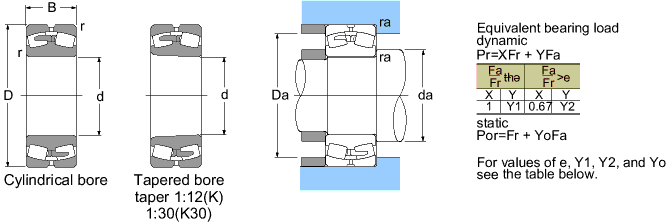

23080BL1技術參數
| 名字 | 值 | 說明 |
|---|---|---|
| weight | N/A lbs | |
| weight | N/A kg | |
| Bore d | 15.7480 in | |
| O.D.D. | 23.6220 in | |
| Width B or W | 5.8268 in | |
| rs min | 0.1969 in | |
| da min | 16.6141 in | |
| da max | 22.7559 in | |
| Da min | 0.1575 in | |
| Da max | 0.0094 in | |
| ras max | 0.1102 in | |
| e | 0.1638 in | |
| Y1 | 0.1075 in | |
| Y2 | ||
| Y0 | ||
| Bore d | 400.000 mm | |
| O.D.D. | 600.000 mm | |
| Width B or W | 148.000 mm | |
| rs min | 5.000 mm | |
| da min | 422.000 mm | |
| da max | 578.000 mm | |
| Da min | 4.000 mm | |
| Da max | 0.240 mm | |
| ras max | 2.800 mm | |
| e | 4.160 mm | |
| Y1 | 2.730 mm | |
| Y2 | ||
| Y0 | ||
| Series | 230 | 230 Spherical Roller Bearing Series |
| Intrnl Dsgn | B | Asymmetrical rollers |
| Cage | L1 | Machined brass cage |
| Internal Clr. | Normal internal clearance | |
| Tolerance | Class 0 (equiv. to ABEC 1); standard | |
| Static | 1,355,829 LBF | Basic Load Ratings |
| Dynamic | 672,403 LBF | Basic Load Ratings |
| Static | 6,050,000 N | Basic Load Ratings |
| Dynamic | 2,980,000 N | Basic Load Ratings |
| Oil | 680.00 RPM | Limiting Speeds |
| Seals | N/A | Limiting Speeds |
| Grease | 440.00 RPM | Limiting Speeds |
